Cage Freewheels for E-Bike Drives

e_drives
  Cage Freewheels E

with highest torque capacity

f_drives
  Cage Freewheels F

with integrated torque limitation

er_drives
  Cage Freewheels ER

with integrated radial bearing support

hrl_drives
  Cage Freewheels ERL

with integrated radial and axial bearing support

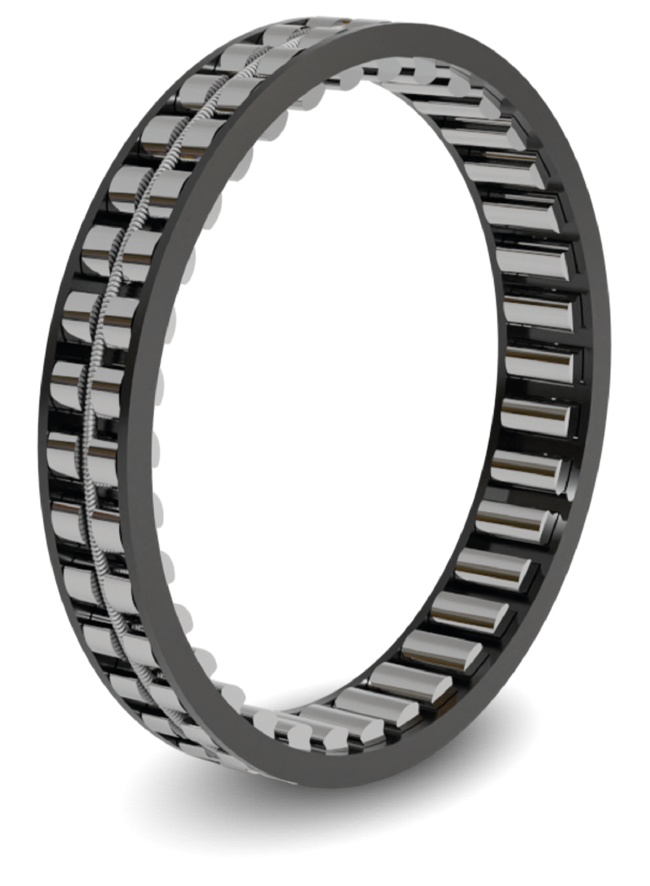

Cage Freewheels E

e_drives Cage made of plastic (PA) Sprags made of hardened chrome steel Cord spring Torques up to 520 Nm

with highest torque capacity

  • Highest torque capacity; three times higher torque capacity than drawn cup roller clutches
  • Increased, customer-supplied component tolerances possible

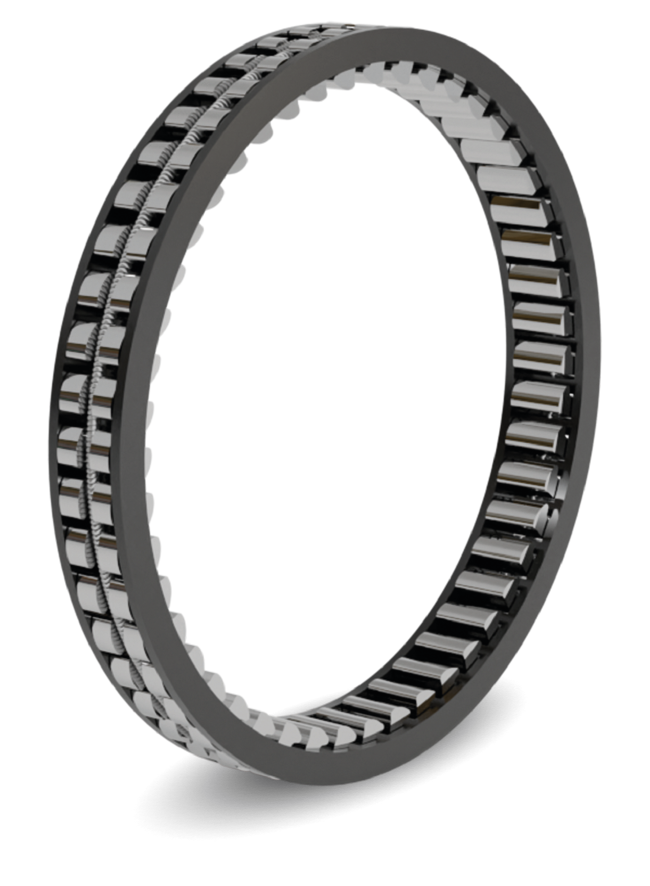

Cage Freewheels F

f_drives Cage made of plastic (PA) Sprags made of hardened chrome steel Cord spring

with integrated torque limitation

  • Integrated torque limitation to protect against failure; In the event of an overload, sprags slip through if the components are matched accordingly.
  • Particularly suitable for installation on the bottom bracket shaft, since extremely high torques can occur here, depending on the type of use and driver
  • Increased, customer-supplied component tolerances possible
  • f_drives

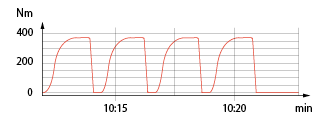

    Integrated torque limitation caps torque peaks

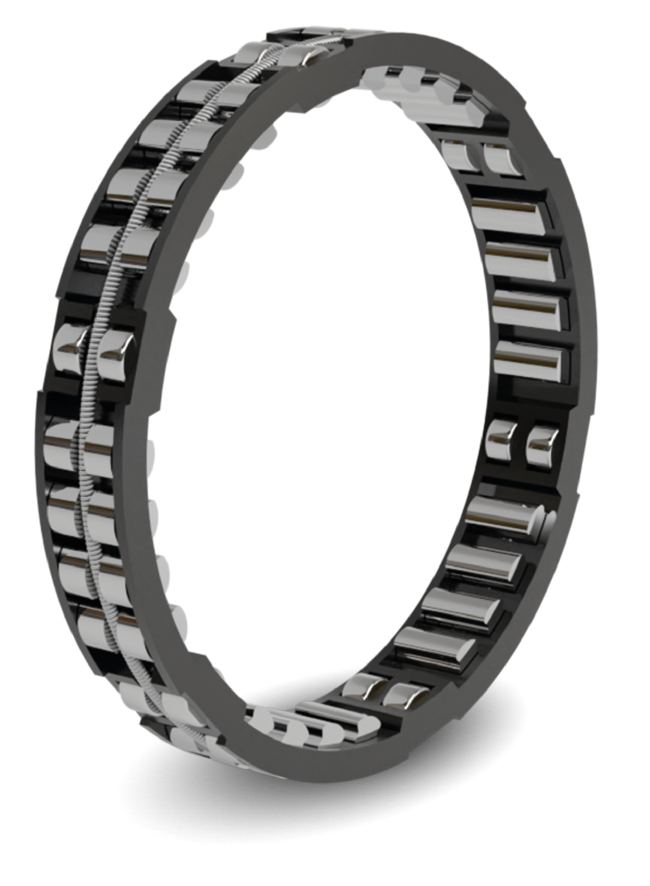

Cage Freewheels ER

er_drives Cage made of plastic (PA) Sprags made of hardened chrome steel Cord spring Rollers for radial bearing support Patented

with integrated radial bearing support

  • Integrated radial bearing support
  • High torque capacity

Cage Freewheels ERL

hrl_drives Cage made of plastic (PA) Bearing washer for axial bearing support and axial securing Rollers for radial bearing support Spring Sprags made of hardened chrome steel Patented

with integrated radial and axial bearing support

  • Integrated radial and axial bearing support
  • No further bearing support also with helical gears necessary
  • Integrated axial securing
